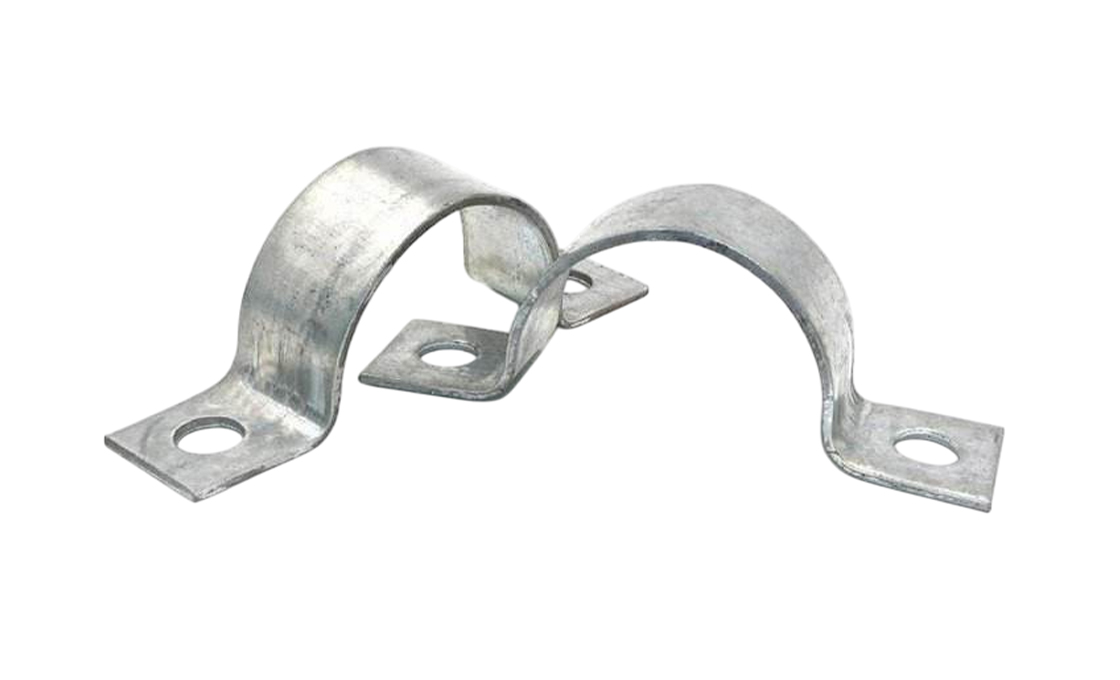

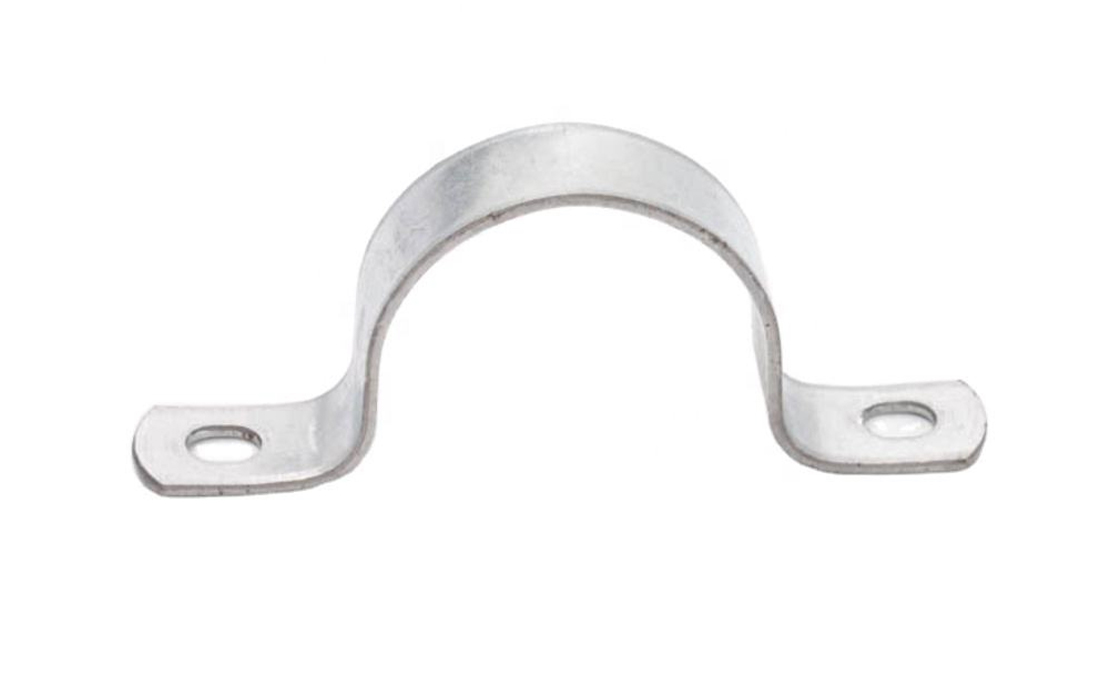

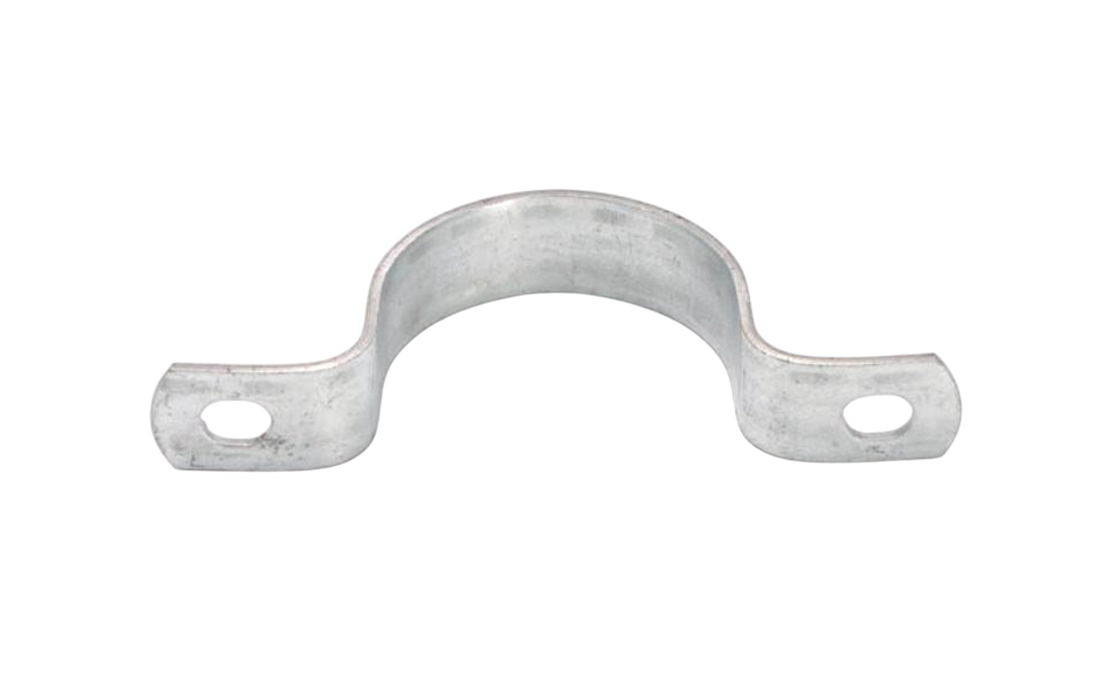

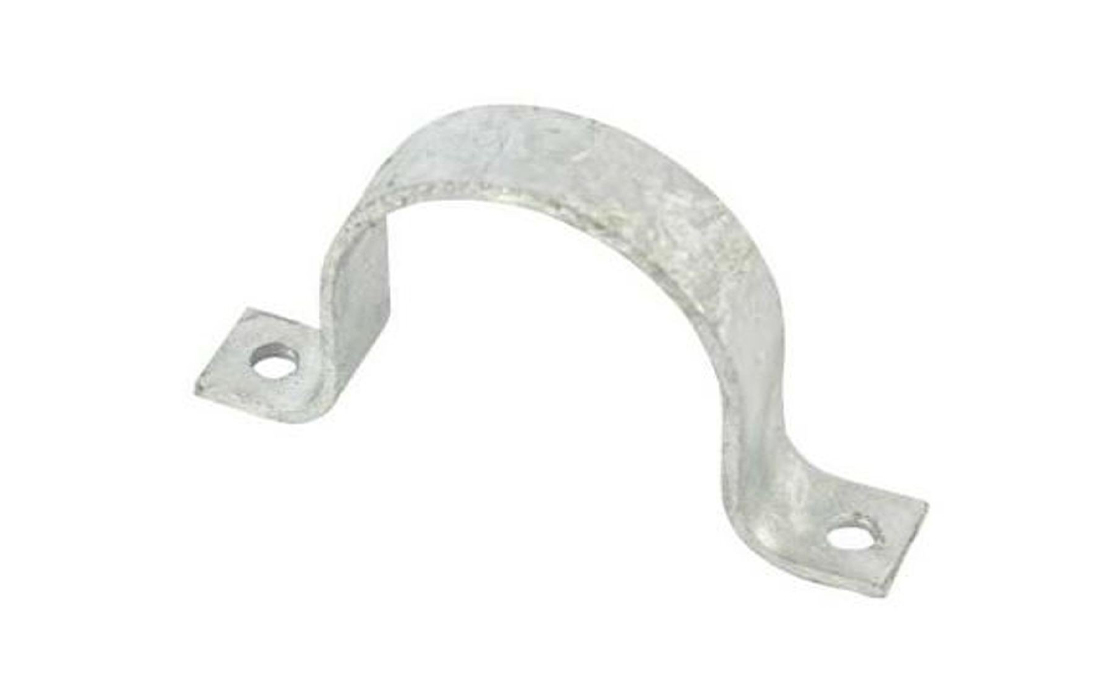

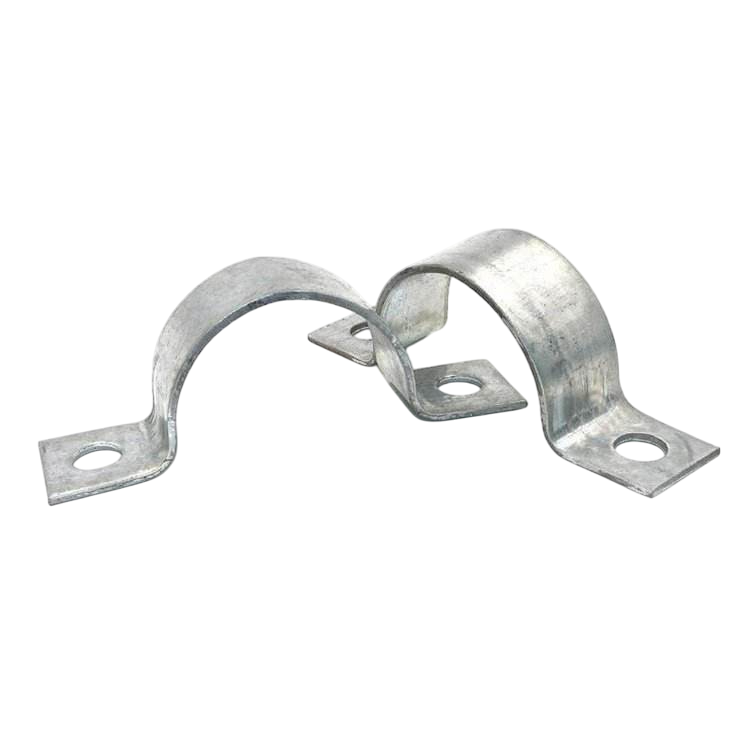

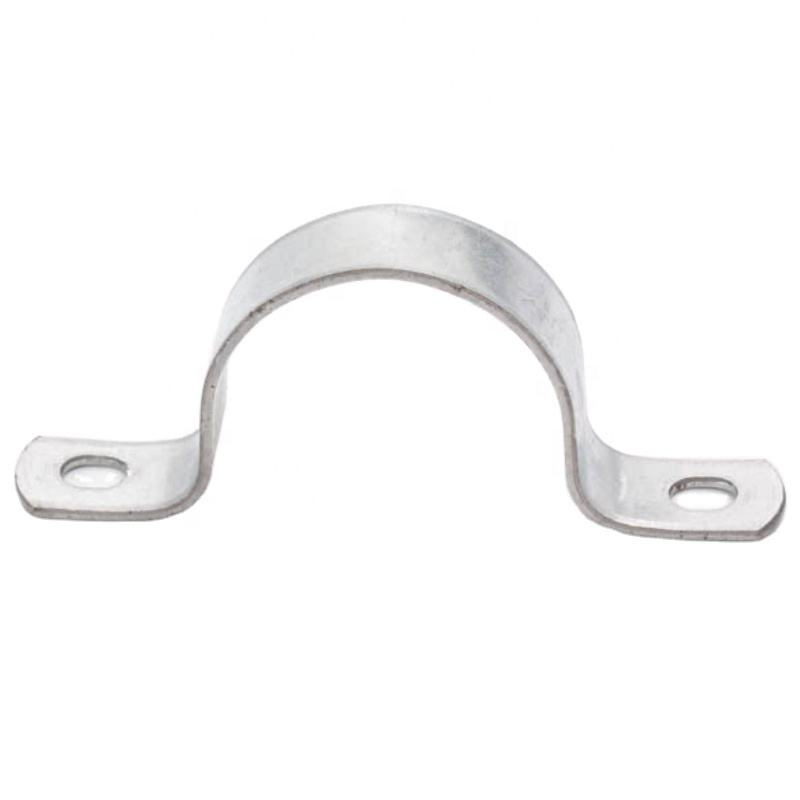

Cable Guard Strap
- Protects cables on the pole surface
- Hot-dip galvanized steel
- Fits standard cable sizes
- Easy bolt-on installation
- ASTM A153 compliant
- Custom lengths available
Technical Specifications
| Model | Size/Type | Dimension | Bolt | Weight (kg) | Finish |
|---|---|---|---|---|---|
| CGS-S | Small | 25 mm cable | M10 | 0.3 | HDG |
| CGS-M | Medium | 50 mm cable | M12 | 0.5 | HDG |
| CGS-L | Large | 75 mm cable | M12 | 0.7 | HDG |
Application & Installation
Where it is used
Cable Guard Strap is used in overhead power distribution and transmission systems as part of the pole line hardware assembly. Typical applications include rural electrification, urban distribution, substation yards, and industrial power lines.
Installation notes
- Verify drawing and material certificate before installation.
- Mount per the utility specification or manufacturer’s drawing.
- Use matching hot-dip galvanized bolts and washers.
- Torque all fasteners to the specified value.
- Inspect the full assembly before energizing the line.
Buyer’s Guide: Cable Guard Strap
1. What Is a Cable Guard Strap?
Cable Guard Strap is a structural pole line hardware component used in overhead electrical distribution. It is manufactured from galvanized steel, finished with hot-dip galvanized, and designed for long-term outdoor service in utility environments.
2. How to Choose the Right Size
Selection depends on the pole diameter, the conductor or equipment to be supported, and the mechanical load. Consult the Technical Specifications table above for standard model numbers, or send your drawing via the inquiry form for custom sizing.
3. Material & Finish
Raxsteel manufactures this product from galvanized steel, with a hot-dip galvanized finish to ASTM A153 or ISO 1461. The finish protects against corrosion for 30+ years in typical utility environments.
4. Ordering & Customization
Standard models ship in 20–30 days. Custom sizes, drilling, or finishes are available on request — send us your drawing for a 24-hour quote.
