Pigtail Bolt

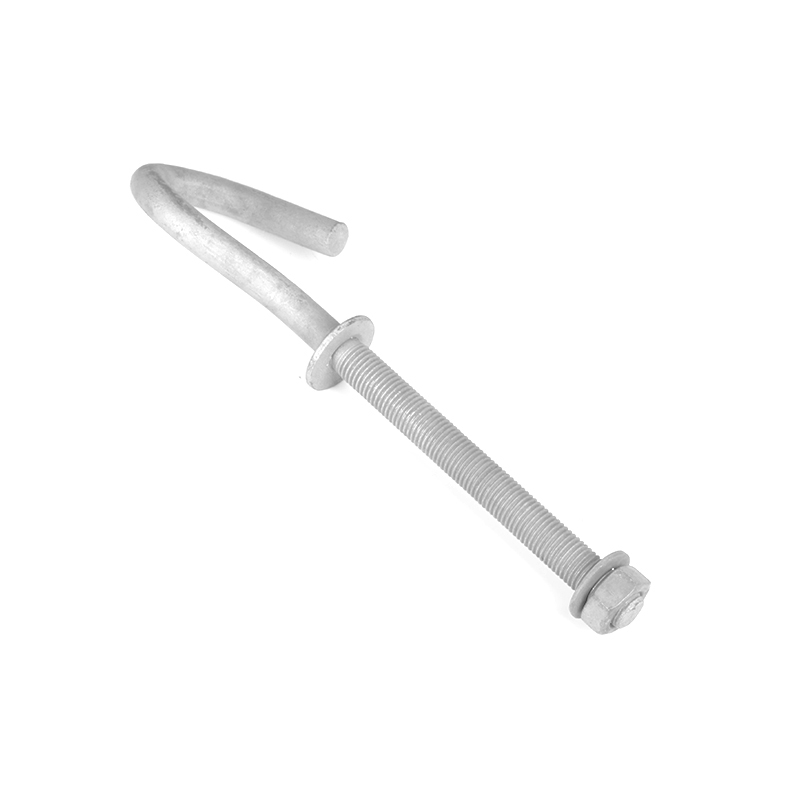

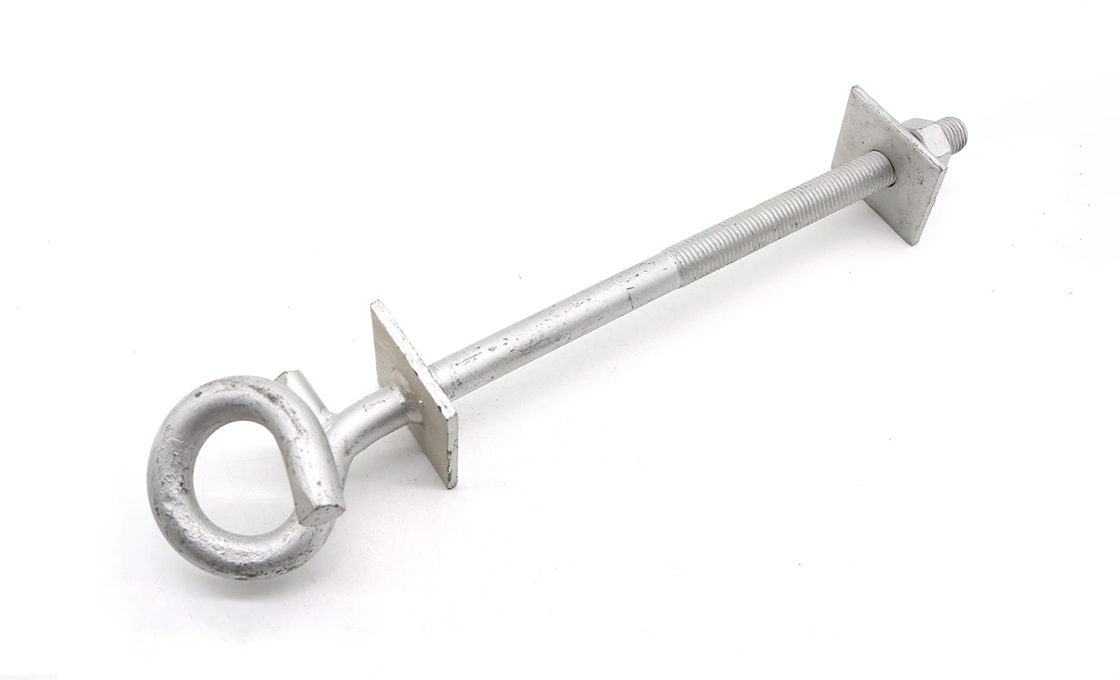

- Pigtail (open-curl) bolt for hanging spans of LV-ABC or service cable
- Open curled hook lets cable drop in without threading the end
- Screw or bolt base mounts to pole, bracket or arm
- Galvanized steel to ASTM A-153
- For aerial service drops and secondary support
- Quick cable dressing without dead-ending
Technical Specifications
| Catalog | Mount | Hook ID (mm) | For Cable | Load (kg) | Surface |
|---|---|---|---|---|---|
| RAX-PT-S | Lag screw | 22 | LV-ABC / drop | 150 | HDG |
| RAX-PT-B | Through bolt | 22 | LV-ABC / drop | 200 | HDG |
| RAX-PT-L | Lag screw | 30 | Bundle | 250 | HDG |
| Custom | Other sizes / configurations — send your conductor & structure spec | ||||
Application & Installation
Where it is used
The pigtail bolt is an open curled hook on a screw or bolt base, used to carry and dress aerial service cable or LV-ABC along a pole line without dead-ending it. The open curl lets a lineman drop the cable into the hook without threading the cable end — fast support for service drops and secondary runs.
Installation sequence
- Choose the screw or bolt base for the structure.
- Drive the lag screw or bolt the base into the pole / bracket.
- Confirm the pigtail curl faces the cable run.
- Drop the cable into the open hook.
- Dress the cable so it seats in the curl.
Buyer’s Guide: Pigtail Bolt
1. What a Pigtail Bolt Is
A pigtail bolt is a support hook shaped as an open curl (“pigtail”) on a threaded base. It holds aerial service cable or LV-ABC along the pole route, letting the cable be laid into the open hook rather than threaded through a closed eye.
2. Open Curl Convenience
The open pigtail means a lineman can drop the cable in mid-run without access to the cable end — far faster than a closed eye when dressing long service or secondary runs.
3. Screw vs Bolt Base
A lag-screw base drives into a wood pole or arm directly; a through-bolt base mounts to a bracket or steel. Choose by the structure and the load the support carries.
4. Load & Cable Type
Rated for the light loads of service drops and LV-ABC support (150–250 kg). It is a support, not a dead-end — for terminating tension use an anchoring or dead-end clamp.
5. Galvanizing
Hot-dip galvanized to ASTM A-153 for long outdoor life carrying service cable.
6. Pairing
Used along a service run between dead-ends, with anchoring clamps and brackets at the terminations. Order with the matching bracket where a bolt base is used.
