Street Light Arm
Pole Line Hardware

Street Light Arm

  • Hot-dip galvanized steel, 25+ year corrosion resistance
  • Manufactured to ANSI / IEC / GOST standards
  • Custom dimensions and bolt patterns accepted
  • SGS / BV third-party test reports on request
  • Free 3–5 piece samples for qualified buyers
  • Factory direct — competitive bulk pricing
Material: Galvanized Steel
Surface: HDG 80−100 μm
MOQ: 100 pcs
Standard: ASTM A153


Download Datasheet

Technical Specifications

Standard models — custom dimensions on request.
Model Length (mm) Bolt Hole Weight (kg) Finish
Standard Small 200 M16 1.2 HDG
Standard Medium 300 M16 1.8 HDG
Standard Large 400 M20 2.6 HDG
Custom Per customer drawing — contact us
* All dimensions may vary ± 2 mm. Request full datasheet PDF via the inquiry form.

Application & Installation

Where it is used

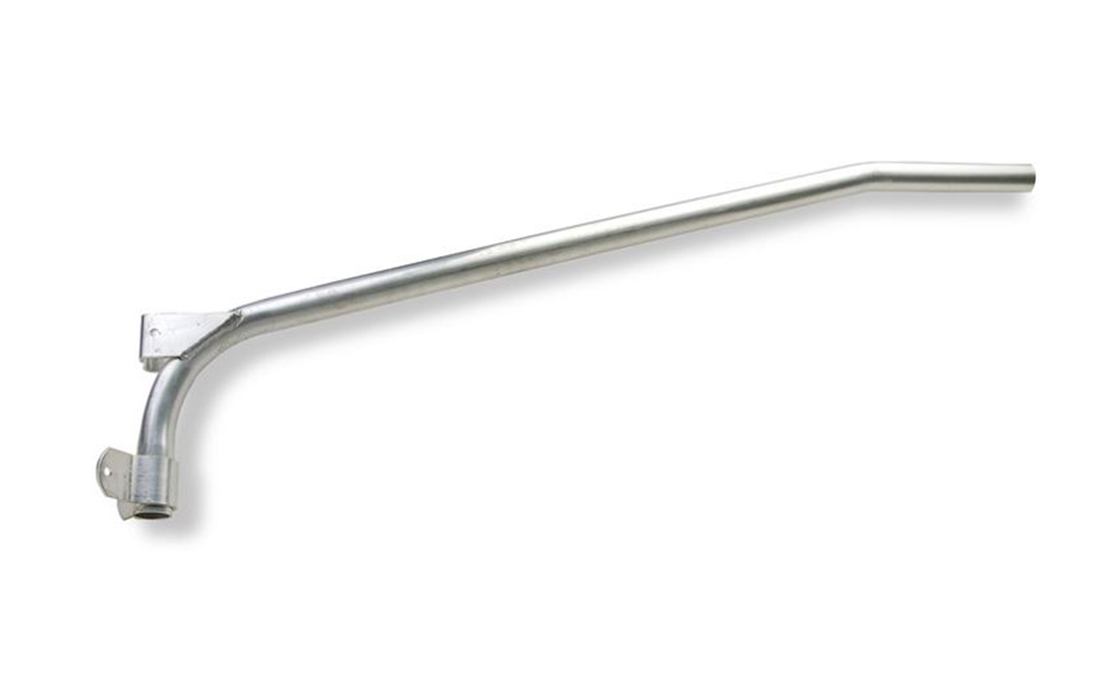

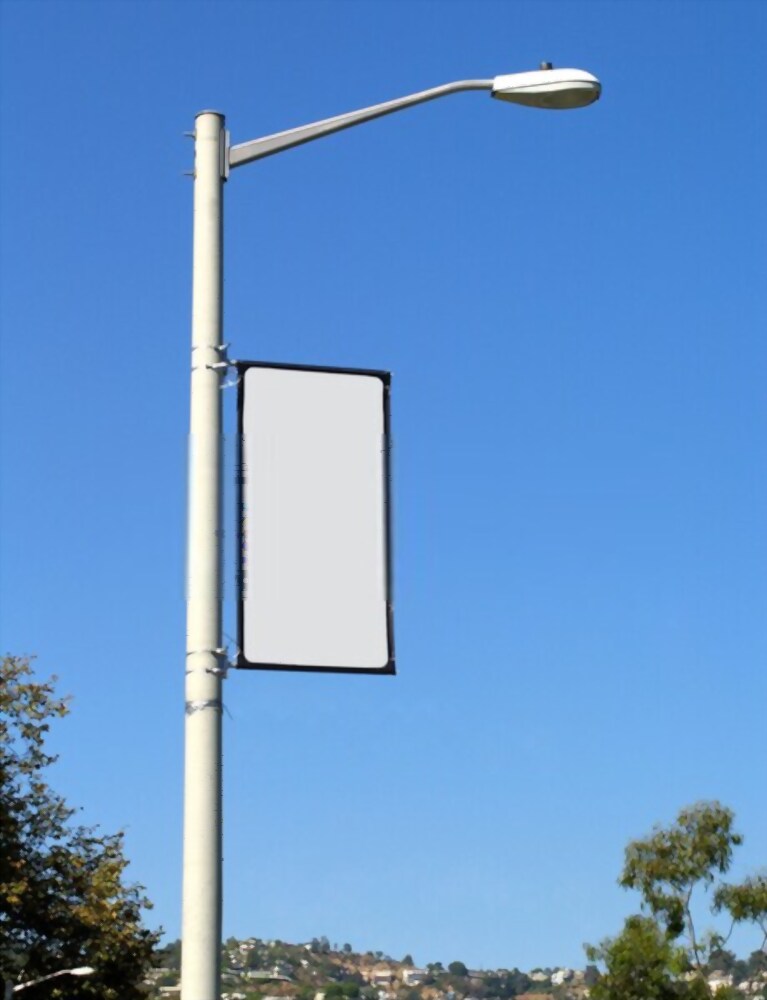

The street light arm is the cantilevered steel arm that mounts a luminaire away from the utility pole. Available in straight, single-curved (S-curve) and double-curved profiles with standard NEMA mounting at the luminaire end.

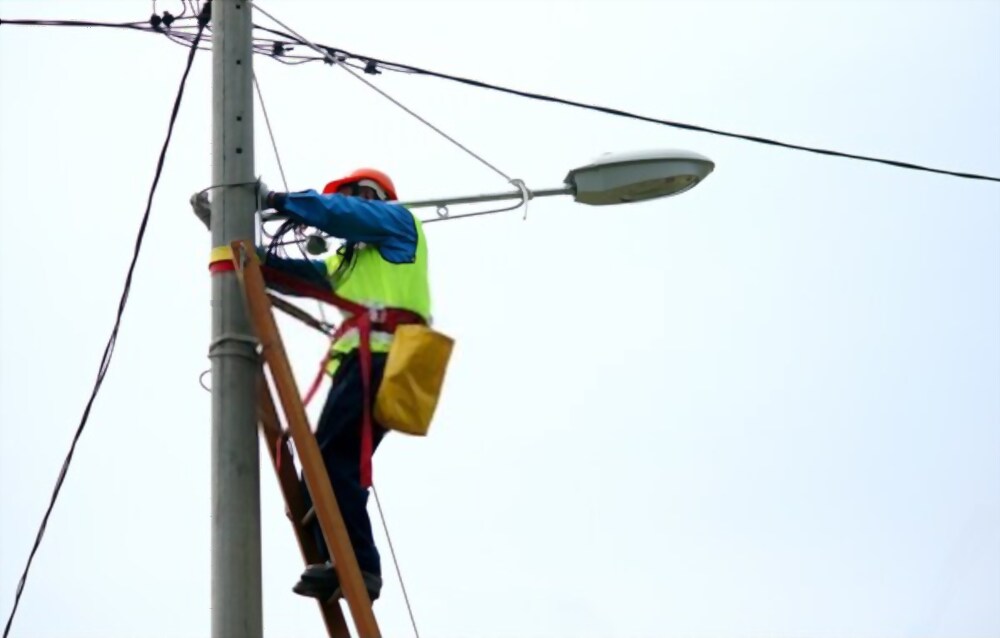

Installation steps

  1. Mark the desired mounting position on the structure.
  2. Secure the fitting with hot-dip galvanized through bolts or pole band.
  3. Verify clearance from adjacent conductors and hardware.
  4. Torque all fasteners to the utility specification.
  5. Inspect the assembly before energizing the line.

Buyer’s Guide: Street Light Arm

The street light arm is the cantilevered steel arm that mounts a luminaire away from the utility pole. Available in straight, single-curved (S-curve) and double-curved profiles with standard NEMA mounting at the luminaire end.

Material & Coating

Manufactured from carbon steel (Q235 / A36) and hot-dip galvanized to ASTM A153 / ISO 1461 with 80−100 μm zinc coating. Suitable for 25 + years of outdoor service in coastal and inland environments.

Quality Control

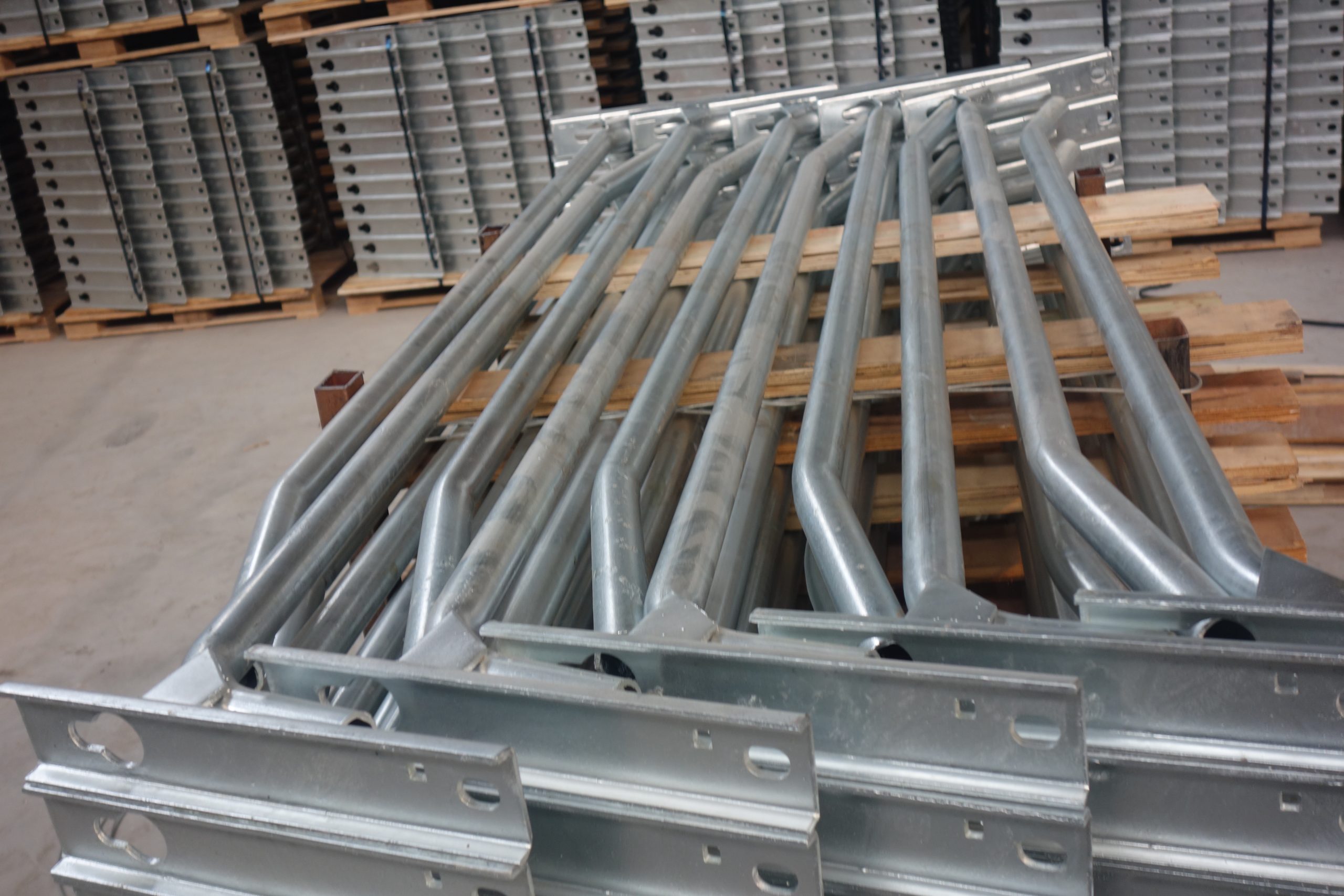

Each batch is dimensionally checked and load-tested before galvanizing. SGS and BV third-party reports are available on request — full mill certificates ship with every order.

Custom Manufacturing

For project-specific requirements we manufacture to customer drawings. Minimum batch 200 pcs, lead time 25−30 days from sample approval. Free 3–5 piece samples available for quality verification.

Frequently Asked Questions

What is the MOQ? ▸
Minimum order quantity is 100 pcs per standard size. Lower quantities may be available on a case-by-case basis — contact us for small-order pricing.
Can you manufacture to our drawing? ▸
Yes. Send us a PDF, DWG, or hand-drawn sketch and we will return a quote within 24 hours. Customization is free for orders of 500 pcs or more.
What certifications do your products carry? ▸
All products are manufactured to ASTM A153 / ISO 1461 standards. Our factory is SGS-certified, with full material and test certificates shipped with every order.
How long is the lead time? ▸
Standard items: 20–30 days from order confirmation. Custom items: 30–45 days depending on quantity. Rush production available for an additional fee.
Do you offer free samples? ▸
Free samples are available for qualified buyers; the customer covers courier charges. Please send your company profile and project details with the sample request.
